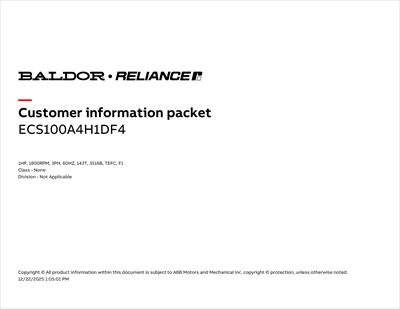

Baldor ECS100A4H1DF4
* Actual Product May Differ From Image
ECS100A4H1DF4
Part Number: ECS100A4H1DF4
Model/Spec Number: 781568950876
Manufacturer: Baldor
HP: 1
Frame:Steel
Frame Size:143T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Permanent Magnet PWM AC Drive Control, IP54 Gasket Plastic Cover Enclosure, Built in ABB Ability and Bluetooth communications, 2 Digital Inputs, 2 Configurable Inputs, 1 Relay Output, Class F Insulation Internal Grounding Brush
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$1,966.20 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS
Documents
Product Specifications
| Applications: | Compressors, Blowers, Fans, Unit Handling, HVAC Systems, Pumps, Variable Speed Applications | ||||
| Enclosure: | TEFC | Frame Size: | 143T | Agency Approvals: | UL;WEEE |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 1 Hp |
| Synchronous RPM: | 1800 | Base Speed: | 1800 RPM | Voltage: | 460V |
| Service Factor: | 1.00 | Motor Weight: | 35.0 lbs | Duty Cycle: | Continuous |
| Overall Length: | 16.71 in | Frequency: | 60 Hz | Phase: | Three Phase |
| Efficiency: | 89.3 % | XP Temp Code: | Without | End Plate: | STANDARD |
| Bearing DE: | 6205 | Bearing ODE: | 6203 | Ambient Temp: | 40 °C |
| Shaft Diameter: | 0.8750 in | Inverter Duty: | Inverter Duty | Shaft Grounding: | Shaft Grounding |
| IP Rating: | NONE | Standard: | NEMA | List: | 2566.00 |
