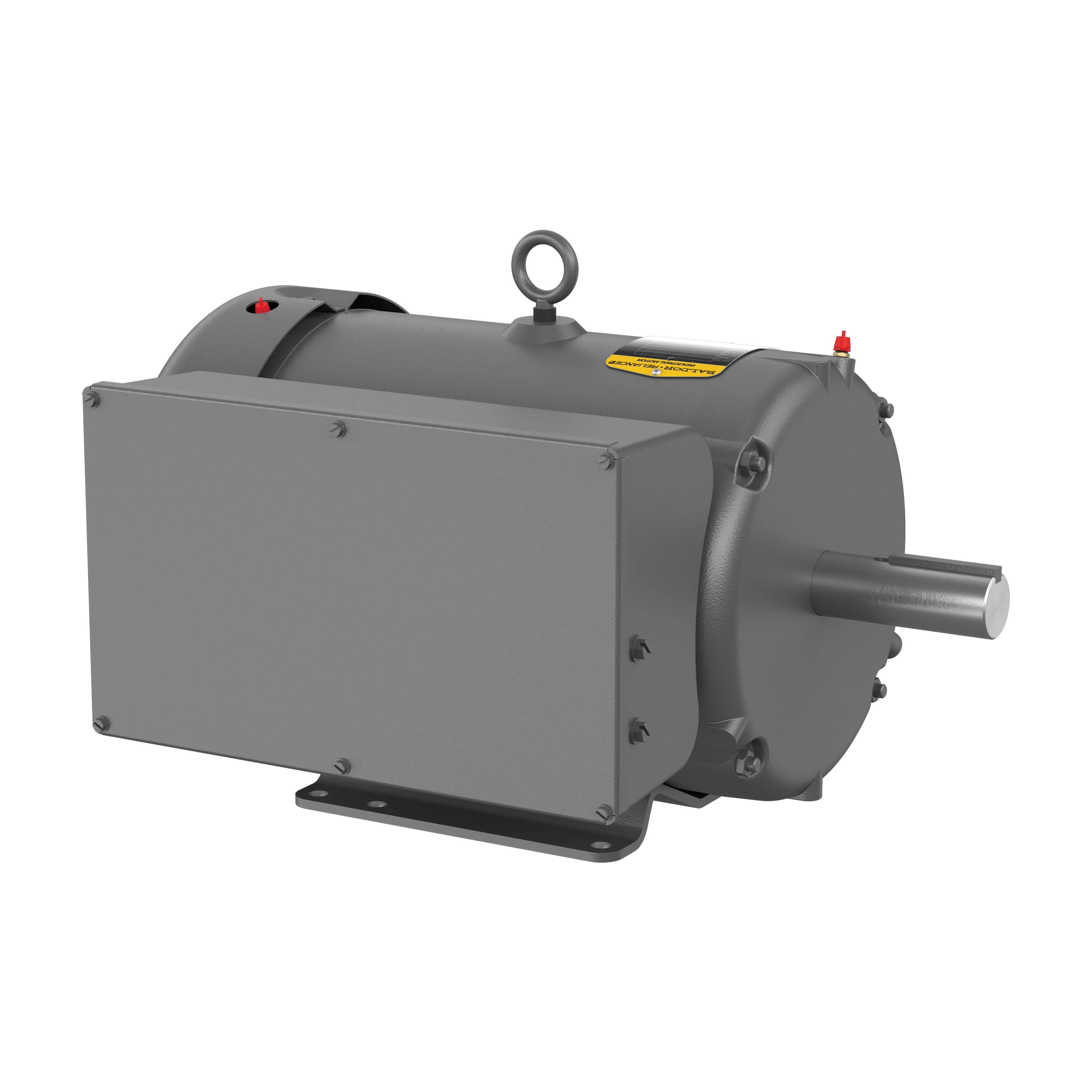

Baldor L3612TM
* Actual Product May Differ From Image
L3612TM
Part Number: L3612TM
Model/Spec Number: 781568112380
Manufacturer: Baldor
HP: 5
RPM: 1725
Frame:Steel
Frame Size:184T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Low noise vibration dampening base, Dynamically balanced rotor to increase bearing life, Superior switch design provides optimized torque profiles, Robust heavy gauge steel design
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$1,624.14 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Fans, Air handling, Conveyors, Pumps, Material Handling, Machine Tools | ||||
| Enclosure: | TEFC | Frame Size: | 184T | Agency Approvals: | CSA;UR |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 5 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1725 | Voltage: | 230V |
| Full Load Amps: | 23 | Service Factor: | 1.00 | Motor Weight: | 100.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 18.04 in | Frequency: | 60 Hz |
| Phase: | Single Phase | Efficiency: | 80 % | XP Temp Code: | Without |
| End Plate: | STANDARD | Bearing DE: | 6206 | Bearing ODE: | 6205 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 1.1250 in | Inverter Duty: | Not Inverter |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 2371.00 | ||||
