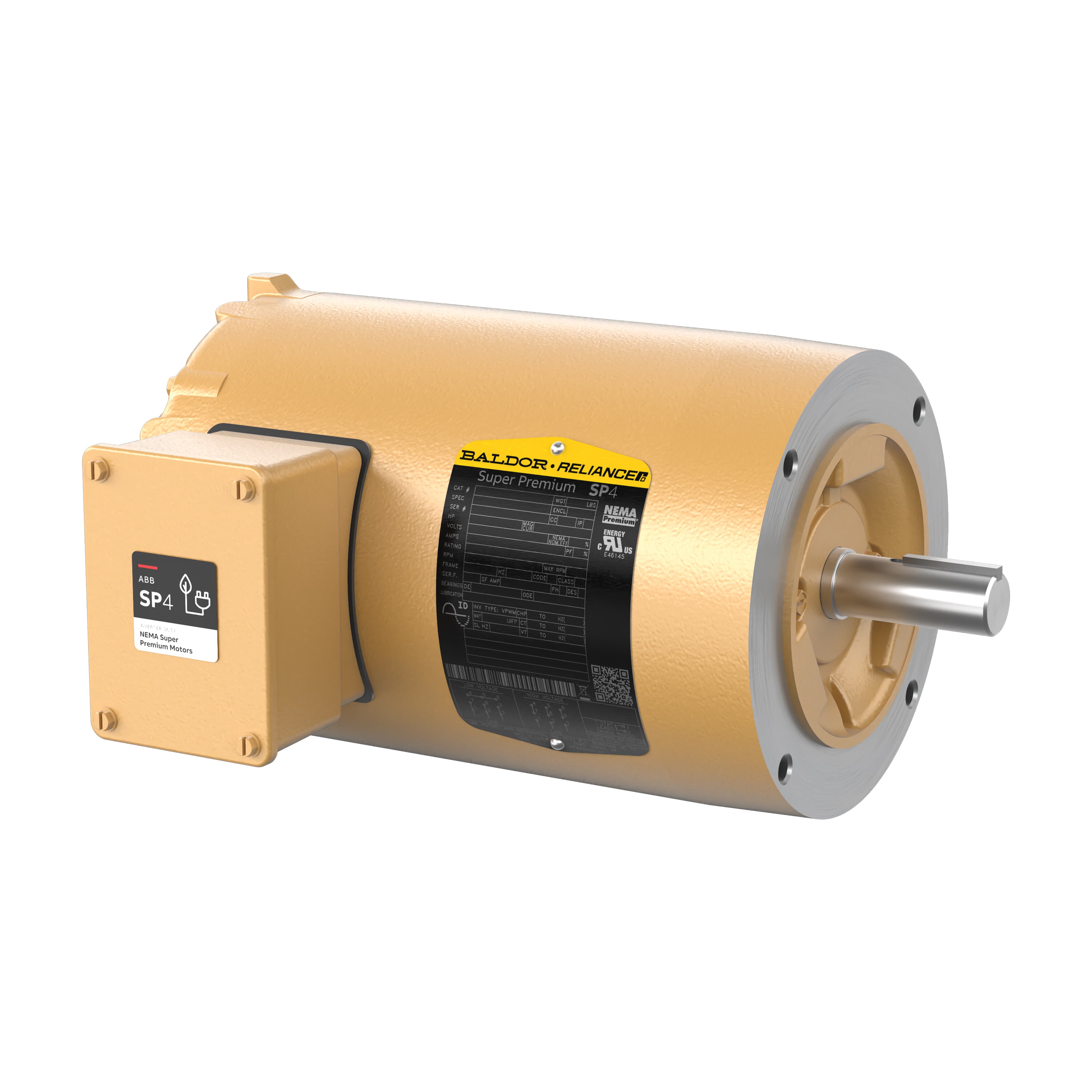

Baldor VSPNM3542
* Actual Product May Differ From Image
VSPNM3542
Part Number: VSPNM3542
Model/Spec Number:
Manufacturer: Baldor
HP: 3/4
RPM: 1735
Frame:Steel
Frame Size:56C
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Suitable for inverter use per NEMA MG1 part 31.4.4.2, 60 Hz Designs, Designed for longevity with a 4 year warranty on Super Premium efficient SP4 motors, Optimized airflow design providing higher horsepower in a smaller package, Cooler operation for longer lifespan
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$578.75 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS
Documents
Product Specifications
| Applications: | Fans, Pumps, Blowers, Conveyors, Compressors, Industrial Machines, Other general purpose applications | ||||
| Enclosure: | TENV | Frame Size: | 56C | Agency Approvals: | CSA;UR;WEEE |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | No Mounting | Horsepower: | 3/4 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1735 | Voltage: | 230/460V |
| Full Load Amps: | 1.9/0.95 | Service Factor: | 1.15 | Motor Weight: | 40.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 12.63 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 84 % | XP Temp Code: | Without |
| Bearing DE: | 6203 | Bearing ODE: | 6203 | Ambient Temp: | 40 °C |
| Shaft Diameter: | 0.5000 in | Inverter Duty: | Not Inverter | Shaft Grounding: | No Shaft Grounding |
| IP Rating: | IP54 | Standard: | NEMA | List: | 859.00 |
