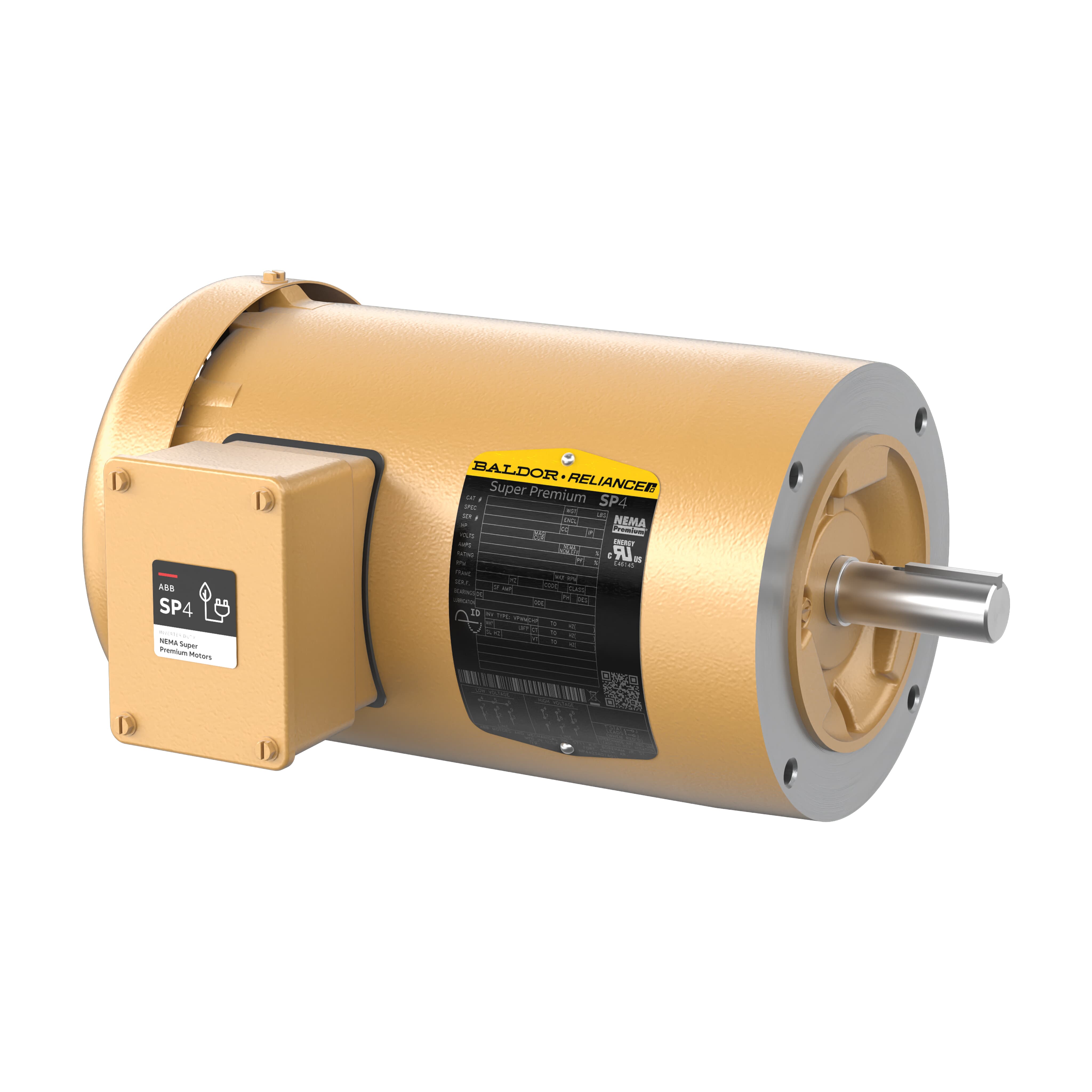

Baldor VSPM3556T
* Actual Product May Differ From Image
VSPM3556T
Part Number: VSPM3556T
Model/Spec Number: 781568600610
Manufacturer: Baldor
HP: 1
RPM: 1170
Frame:Steel
Frame Size:145TC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Suitable for inverter use per NEMA MG1 part 31.4.4.2, 60 Hz Designs, Designed for longevity with a 4 year warranty on Super Premium efficient SP4 motors, Optimized airflow design providing higher horsepower in a smaller package, Cooler operation for longer lifespan
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$1,065.20 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS
Documents
Product Specifications
| Applications: | Fans, Pumps, Blowers, Conveyors, Compressors, Industrial Machines, Other general purpose applications | ||||
| Enclosure: | TEFC | Frame Size: | 145TC | Agency Approvals: | CSA EEV;NEMA_PREMIUM;UR;WEEE |
| Frame Material: | Steel | Poles: | 6 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | No Mounting | Horsepower: | 1 Hp |
| Synchronous RPM: | 1200 | Speed RPM: | 1170 | Voltage: | 230/460V |
| Full Load Amps: | 3.32/1.66 | Service Factor: | 1.15 | Motor Weight: | 47.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 14.19 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 84 % | XP Temp Code: | Without |
| Bearing DE: | 6205 | Bearing ODE: | 6203 | Ambient Temp: | 40 °C |
| Shaft Diameter: | 0.8750 in | Inverter Duty: | Inverter Duty | Shaft Grounding: | No Shaft Grounding |
| IP Rating: | IP54 | Standard: | NEMA | List: | 1581.00 |
