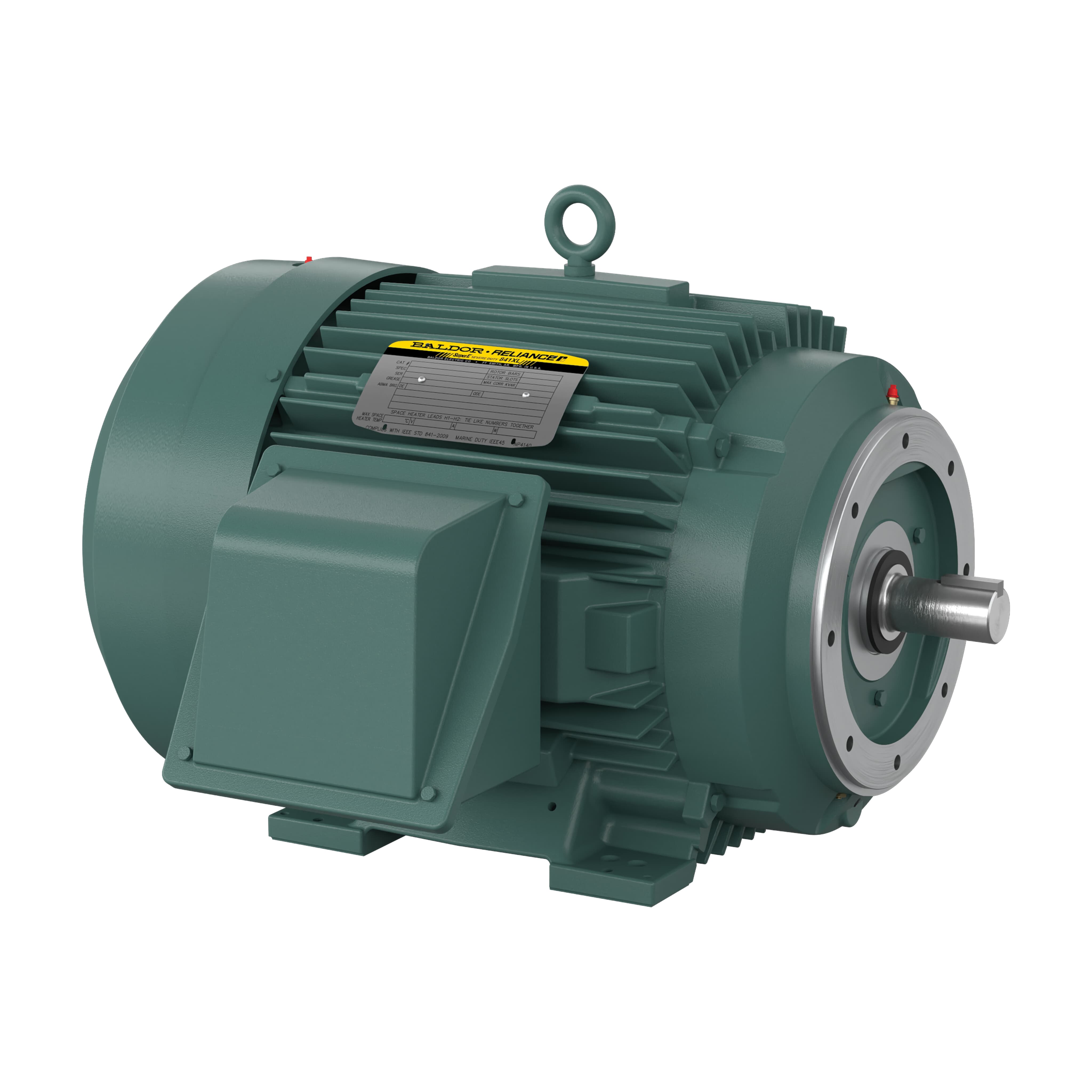

Baldor CECP4410T-4
* Actual Product May Differ From Image
CECP4410T-4
Part Number: CECP4410T-4
Model/Spec Number: 781568967508
Manufacturer: Baldor
HP: 125
RPM: 1785
Frame:Iron
Frame Size:444TC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Robust cast iron frame construction, Regreasable bearings all frames, 304 Stainless steel nameplates, Inverter Duty nameplate, Division 2/Class 1 Groups A-B-C-D markings on nameplate, Insulated NDE bearing on 5000 frames, Class F insulated motor with 1.15 service factor
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$21,238.35 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Power Generation, Metal & Foundries, Chemical, Oil, Gas, Food Processing, Pulp, Paper, Forest production, Wastewater treatment, Cement | ||||
| Enclosure: | TEFC | Frame Size: | 444TC | Agency Approvals: | CCSAUSEEV |
| Frame Material: | Iron | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 125 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1785 | Voltage: | 460V |
| Full Load Amps: | 144 | Service Factor: | 1.15 | Motor Weight: | 1669.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 44.96 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 95.4 % | XP Temp Code: | T3 |
| End Plate: | C-FACE | Bearing DE: | 6318 | Bearing ODE: | 6318 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 3.3750 in | Inverter Duty: | Inverter Ready |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 30072.00 | ||||
