Baldor CEWDM2280T
* Actual Product May Differ From Image
CEWDM2280T
Part Number: CEWDM2280T
Model/Spec Number: 781568924600
Manufacturer: Baldor
HP: 5
RPM: 880
Frame:Iron
Frame Size:254TC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
300 series stainless steel hardware, Neoprene gaskets, Double sealed ball bearings, Lip and V-ring seal on DE, White epoxy corrosion resistant finish, Stainless steel shaft extension, 3 Year warranty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$6,289.46 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents

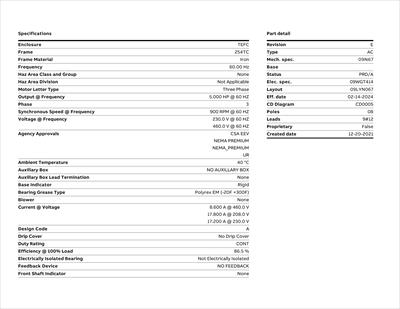

Product Specifications
| Applications: | Packaging, Food Processing, Pumps, Wastewater, Wet environment | ||||
| Enclosure: | TEFC | Frame Size: | 254TC | Agency Approvals: | CSA EEV;NEMA_PREMIUM;UR |
| Frame Material: | Iron | Poles: | 8 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 5 Hp |
| Synchronous RPM: | 900 | Speed RPM: | 880 | Max Speed: | 1325 RPM |
| Voltage: | 230/460V | Full Load Amps: | 17.2/8.6 | Service Factor: | 1.15 |
| Motor Weight: | 256.0 lbs | Duty Cycle: | Continuous | Overall Length: | 23.57 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 86.5 % |
| XP Temp Code: | Without | End Plate: | C-FACE | Bearing DE: | 6309 |
| Bearing ODE: | 6208 | Ambient Temp: | 40 °C | Shaft Diameter: | 1.6250 in |
| Inverter Duty: | Inverter Ready | Shaft Grounding: | No Shaft Grounding | IP Rating: | IP55 |
| Standard: | NEMA | List: | 9335.00 | ||
