Baldor CDP3585
* Actual Product May Differ From Image
CDP3585
Part Number: CDP3585
Model/Spec Number: 781568124543
Manufacturer: Baldor
HP: 2
Frame:Steel
Frame Size:145TC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
NEMA C-Face with removable base, Tachometer adaptable, Class F insulation, Double sealed bearings, 20:1 constant torque, UL and CSA recognized
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$3,041.98 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS

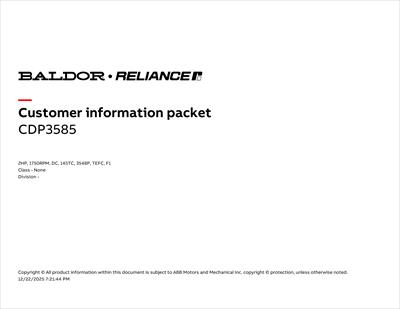

Documents
Product Specifications
| Applications: | Conveyors, Mixers, Packaging Machinery | ||||
| Enclosure: | TEFC | Frame Size: | 145TC | Agency Approvals: | CE;CSA;UR;WEEE |
| Frame Material: | Steel | Insulation Class: | F | Shaft Rotation: | Reversible |
| Base: | Rigid | Horsepower: | 2 Hp | Base Speed: | 1750 RPM |
| Armature Current: | 9.6000 | Service Factor: | 1.00 | Motor Weight: | 74.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 18.14 in | XP Temp Code: | Without |
| Bearing DE: | 6205 | Bearing ODE: | 6205 | Ambient Temp: | 40 °C |
| Shaft Diameter: | 0.8750 in | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 4515.00 | ||
