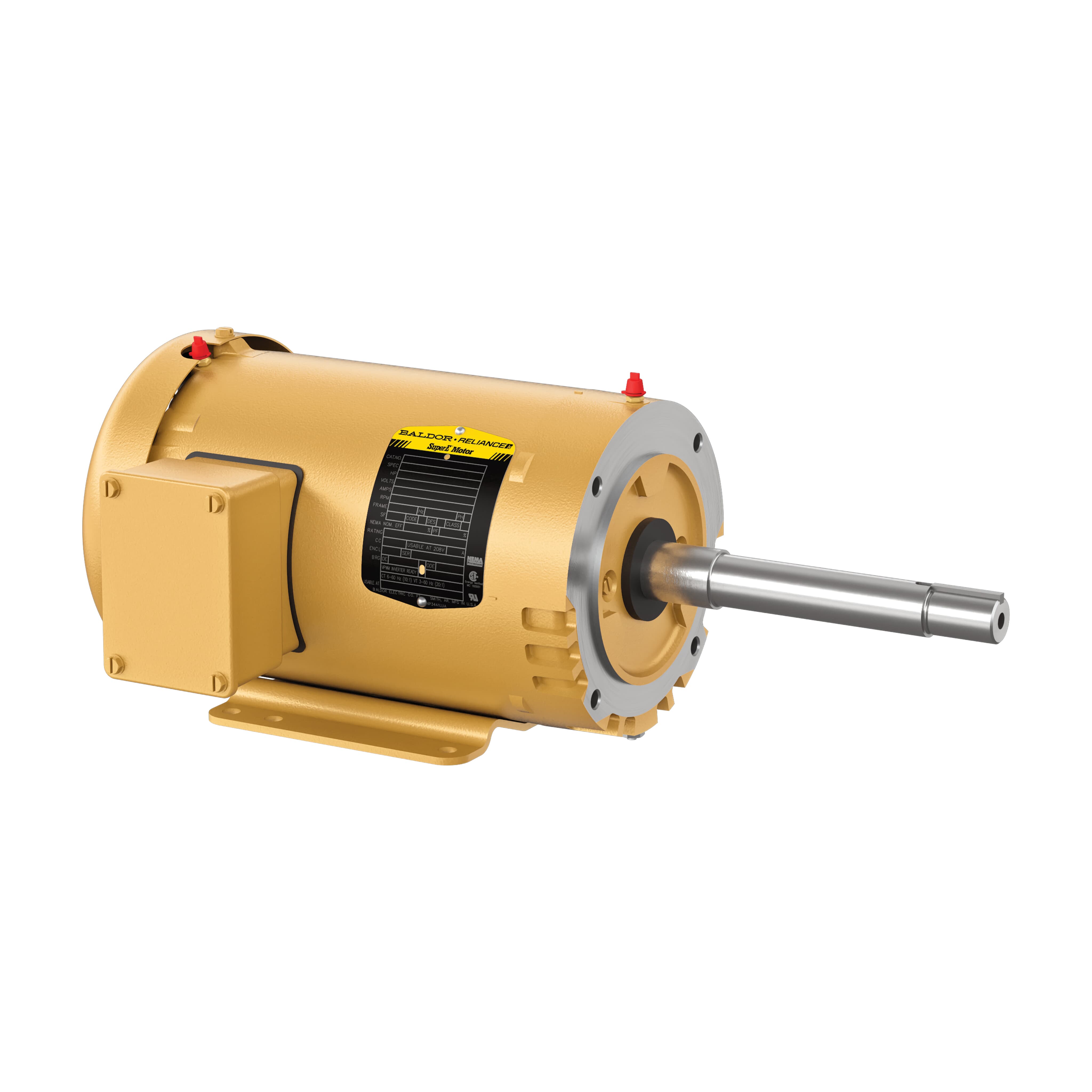

Baldor EJM3558
* Actual Product May Differ From Image
EJM3558
Part Number: EJM3558
Model/Spec Number: 781568809402
Manufacturer: Baldor
HP: 2
RPM: 1760
Frame:Steel
Frame Size:56J
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Corrosion resistant stainless steel shaft extension, Slotted opposite DE shaft for easy installation, Dynamically balanced rotor to reduce noise and increase bearing life, Optimized airflow design providing higher horsepower in smaller package
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$972.90 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS
Documents
Product Specifications
| Applications: | Agricultural, General purpose, Industrial pumps, Commercial machinery, Food, Beverage, Swimming pool pumps, Wastewater | ||||
| Enclosure: | TEFC | Frame Size: | 56J | Agency Approvals: | CSA EEV;NEMA_PREMIUM;UR |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | No Mounting | Horsepower: | 2 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1760 | Voltage: | 230/460V |
| Full Load Amps: | 5.6/2.8 | Service Factor: | 1.15 | Motor Weight: | 48.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 13.72 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 86.5 % | XP Temp Code: | Without |
| End Plate: | C-FACE | Bearing DE: | 6205 | Bearing ODE: | 6203 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 0.6250 in | Inverter Duty: | Inverter Ready |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 1444.00 | ||||
