Baldor EDM3546

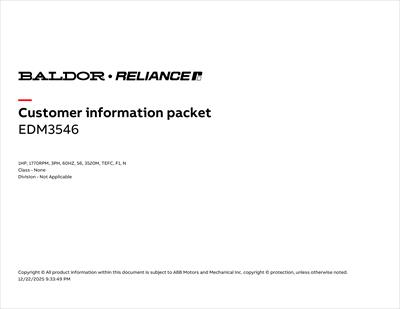

* Actual Product May Differ From Image
EDM3546
Part Number: EDM3546
Model/Spec Number: 781568835302
Manufacturer: Baldor
Frame Size:56
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$1,083.39 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days
586.469.0710
Typically Ships: 1-2 Days
Ships via UPS
Documents
Product Specifications
| Enclosure: | TEFC | Frame Size: | 56 | Agency Approvals: | CCSA US;CSA EEV;NEMA_PREMIUM;UR |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 1 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1770 | Max Speed: | 2700 RPM |
| Voltage: | 230/460V | Full Load Amps: | 3.2/1.6 | Service Factor: | 1.15 |
| Motor Weight: | 35.0 lbs | Duty Cycle: | Continuous | Overall Length: | 12.29 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 85.5 % |
| XP Temp Code: | Without | End Plate: | STANDARD | Bearing DE: | 6205 |
| Bearing ODE: | 6203 | Ambient Temp: | 40 °C | Shaft Diameter: | 0.6250 in |
| Inverter Duty: | Inverter Duty | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 1534.00 |
A&C Electric is a certified distributor service center.
