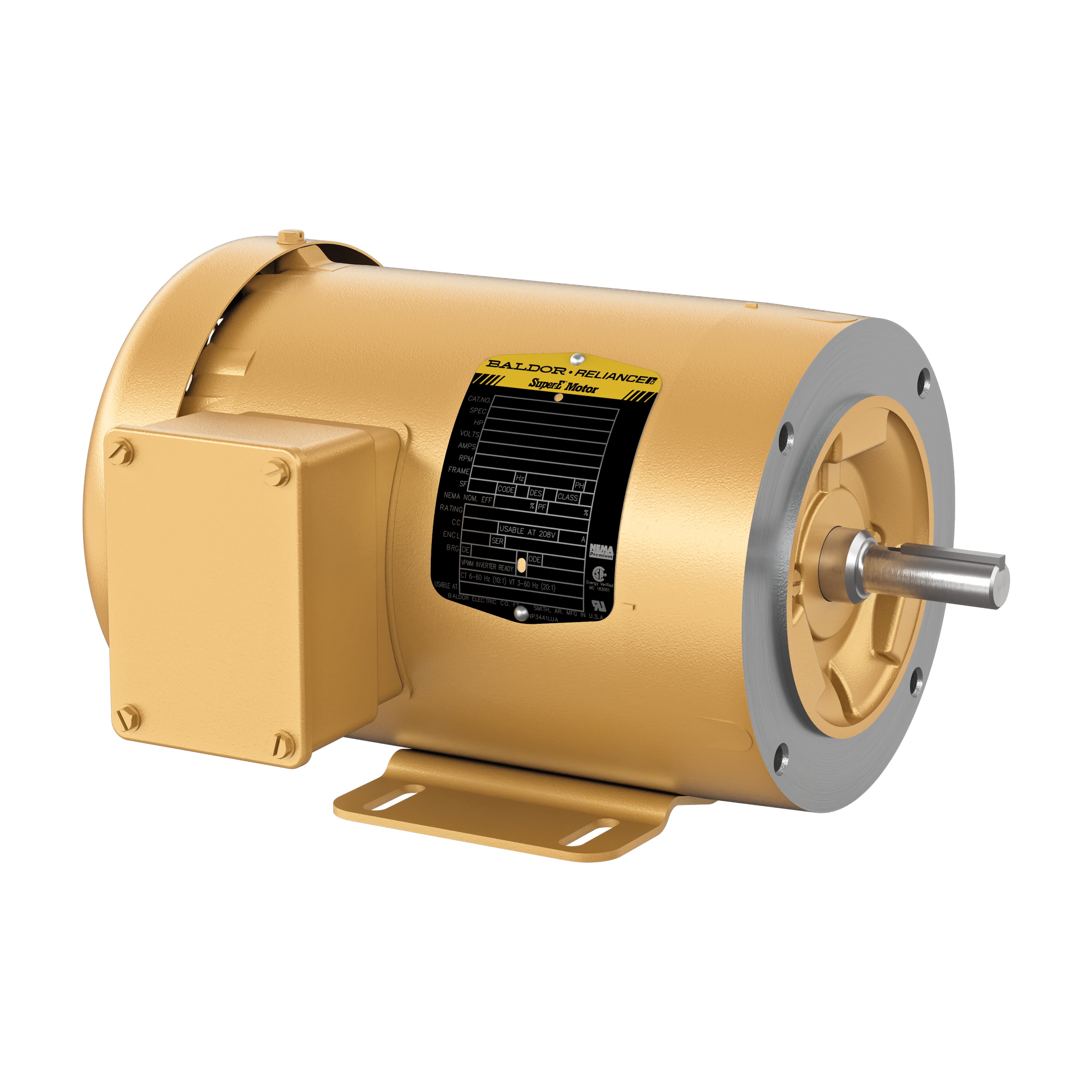

Baldor CEDM3558T
* Actual Product May Differ From Image
CEDM3558T
Part Number: CEDM3558T
Model/Spec Number: 781568835180
Manufacturer: Baldor
HP: 2
RPM: 1760
Frame:Steel
Frame Size:145TC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Cast iron endplates and conduit box, 300 series stainless steel shaft extension, 2 part epoxy paint system passed 2000+ hour salt fog testper ASTM B 117, Permanently lubricated, double sealed ball bearings, IP56 enclosure includes labyrinth shaft seals, Gasketed conduit box, inverter duty nameplate, Meets IEEE 45 on nameplate, Class F insulated motor with 1.15 service factor or higher that operates within Class "B" temperature limits at rated horsepower
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$1,269.13 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS
Documents
Product Specifications
| Applications: | Chemical, Oil, Gas, Coastal Marine, Pulp, Paper, Forest Production | ||||
| Enclosure: | TEFC | Frame Size: | 145TC | Agency Approvals: | CCSA US;CSA EEV;NEMA_PREMIUM;UR |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 2 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1760 | Max Speed: | 2700 RPM |
| Voltage: | 230/460V | Full Load Amps: | 5.6/2.8 | Service Factor: | 1.15 |
| Motor Weight: | 52.0 lbs | Duty Cycle: | Continuous | Overall Length: | 13.35 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 86.5 % |
| XP Temp Code: | Without | End Plate: | C-FACE | Bearing DE: | 6205 |
| Bearing ODE: | 6203 | Ambient Temp: | 40 °C | Shaft Diameter: | 0.8750 in |
| Inverter Duty: | Inverter Ready | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 1797.00 | ||
