Baldor CDM3543

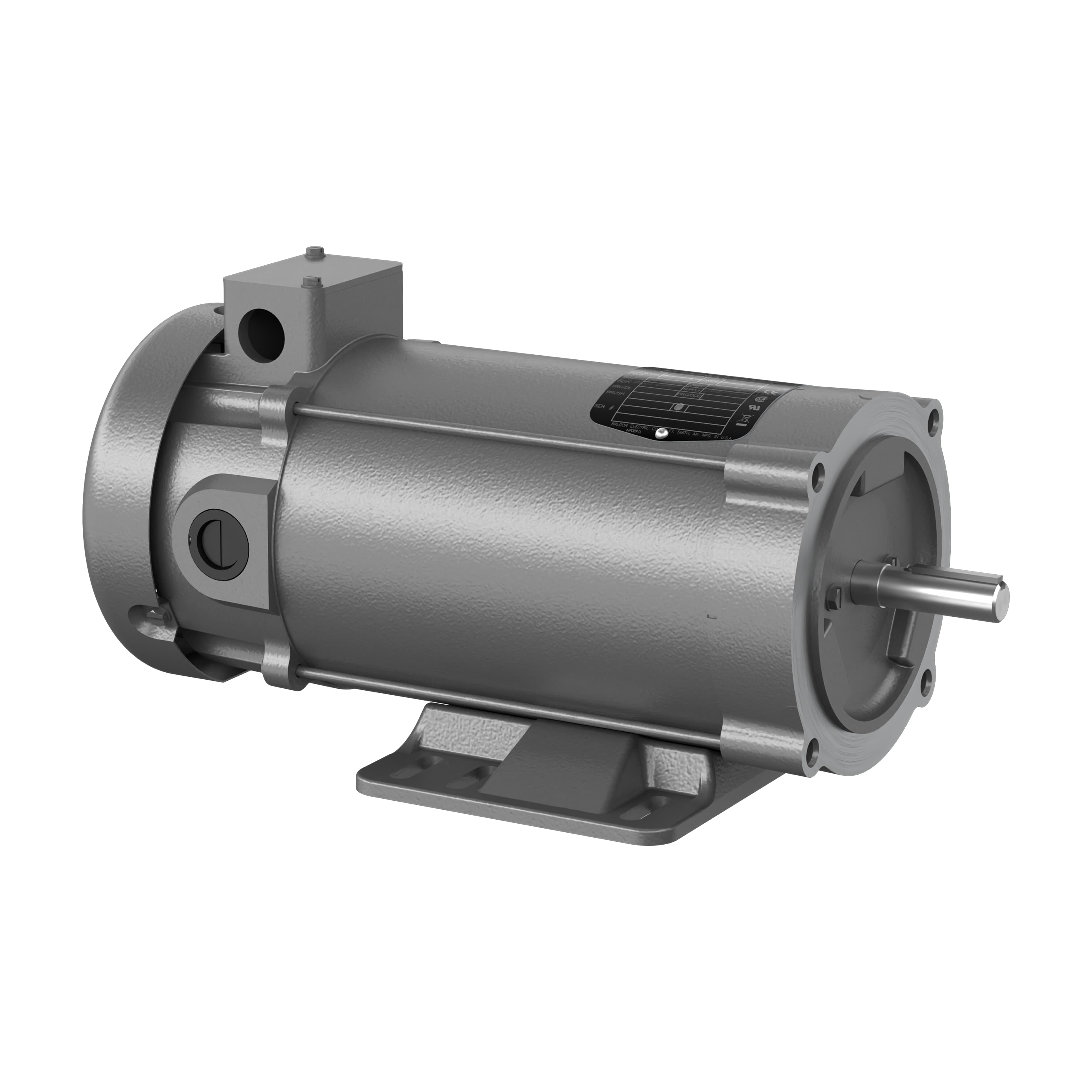

* Actual Product May Differ From Image
CDM3543
Part Number: CDM3543
Model/Spec Number: 781568835111
Manufacturer: Baldor
HP: 3/4
RPM: 1180
Frame:Steel
Frame Size:56C
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Cast iron endplates and conduit box, 300 series stainless steel shaft extension, 2 part epoxy paint system passed 2000+ hour salt fog testper ASTM B 117, Permanently lubricated, double sealed ball bearings, IP56 enclosure includes labyrinth shaft seals, Gasketed conduit box, inverter duty nameplate, Meets IEEE 45 on nameplate, Class F insulated motor with 1.15 service factor or higher that operates within Class "B" temperature limits at rated horsepower
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$956.97 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS
Documents
Product Specifications
| Applications: | Chemical, Oil, Gas, Coastal Marine, Pulp, Paper, Forest Production | ||||
| Enclosure: | TEFC | Frame Size: | 56C | Agency Approvals: | CCSA US;UR |
| Frame Material: | Steel | Poles: | 6 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 3/4 Hp |
| Synchronous RPM: | 1200 | Speed RPM: | 1180 | Max Speed: | 1800 RPM |
| Voltage: | 230/460V | Full Load Amps: | 3.1/1.55 | Service Factor: | 1.15 |
| Motor Weight: | 38.0 lbs | Duty Cycle: | Continuous | Overall Length: | 13.23 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 81.7 % |
| XP Temp Code: | Without | End Plate: | C-FACE | Bearing DE: | 6205 |
| Bearing ODE: | 6203 | Ambient Temp: | 40 °C | Shaft Diameter: | 0.6250 in |
| Inverter Duty: | Inverter Ready | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 1355.00 | ||
