Baldor EHM2547T
* Actual Product May Differ From Image
EHM2547T
Part Number: EHM2547T
Model/Spec Number: 781568423950
Manufacturer: Baldor
HP: 60
RPM: 1775
Frame:Steel
Frame Size:364T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
External provisions for bearing current mitigation, Designed for longevity with 3 year warranty, Suitable for inverter use per NEMA MG1 Part 31.4.4.2
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$6,171.55 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

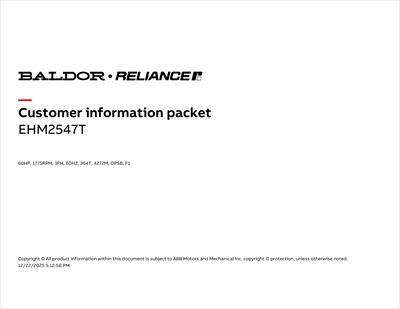

Documents
Product Specifications
| Applications: | Fans, Blowers, Pumps, Air handling, HVAC systems | ||||
| Enclosure: | OPSB | Frame Size: | 364T | Agency Approvals: | CSA;UR |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 60 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1775 | Voltage: | 230/460V |
| Full Load Amps: | 136/68 | Service Factor: | 1.15 | Motor Weight: | 582.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 29.94 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 95 % | XP Temp Code: | Without |
| End Plate: | STANDARD | Bearing DE: | 6313 | Bearing ODE: | 6311 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 2.3750 in | Inverter Duty: | Inverter Ready |
| Shaft Grounding: | Mounting Provisions Only | IP Rating: | NONE | Standard: | NEMA |
| List: | 9160.00 | ||||
