Baldor EHM2276T

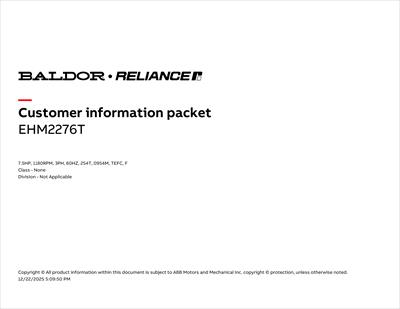

* Actual Product May Differ From Image
EHM2276T
Part Number: EHM2276T
Model/Spec Number: 781568720837
Manufacturer: Baldor
HP: 7 1/2
RPM: 1180
Frame:Iron
Frame Size:254T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
External provisions for bearing current mitigation, Designed for longevity with 3 year warranty, Suitable for inverter use per NEMA MG1 Part 31.4.4.2
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$2,865.46 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Fans, Blowers, Pumps, Air handling, HVAC systems | ||||
| Enclosure: | TEFC | Frame Size: | 254T | Agency Approvals: | CSA EEV;NEMA_PREMIUM;UR |
| Frame Material: | Iron | Poles: | 6 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 7 1/2 Hp |
| Synchronous RPM: | 1200 | Speed RPM: | 1180 | Voltage: | 230/460V |
| Full Load Amps: | 22/11 | Service Factor: | 1.15 | Motor Weight: | 294.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 23.36 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 91 % | XP Temp Code: | Without |
| End Plate: | STANDARD | Bearing DE: | 6309 | Bearing ODE: | 6208 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 1.6250 in | Inverter Duty: | Inverter Ready |
| Shaft Grounding: | Mounting Provisions Only | IP Rating: | NONE | Standard: | NEMA |
| List: | 4253.00 | ||||
