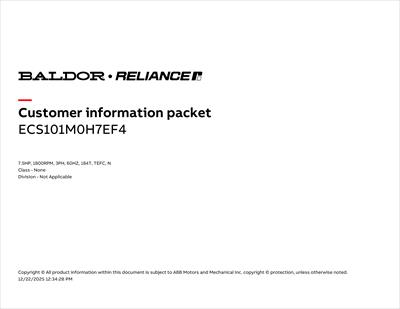

Baldor ECS101M0H7EF4
* Actual Product May Differ From Image
ECS101M0H7EF4
Part Number: ECS101M0H7EF4
Model/Spec Number: 781568951910
Manufacturer: Baldor
HP: 7.5
RPM: 1800
Frame:Steel
Frame Size:184T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Permanent Magnet PWM AC Drive Control, IP54 Gasket Plastic Cover Enclosure, Built in ABB Ability and Bluetooth communications, 2 Digital Inputs, 2 Configurable Inputs, 1 Relay Output, Class F Insulation Internal Grounding Brush
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$1,835.94 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS
Documents
Product Specifications
| Applications: | Compressors, Blowers, Fans, Unit Handling, HVAC Systems, Pumps, Variable Speed Applications | ||||
| Enclosure: | TEFC | Frame Size: | 184T | Agency Approvals: | CULUS;WEEE |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | DETACH |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 7.5 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1800 | Base Speed: | 1800 RPM |
| Voltage: | 230/460V | Service Factor: | DETACH | Motor Weight: | 95.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 18.04 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 94 % | XP Temp Code: | Without |
| End Plate: | STANDARD | Bearing DE: | 6206 | Bearing ODE: | 6205 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 1.1250 in | Inverter Duty: | Inverter Duty |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 2396.00 | ||||
