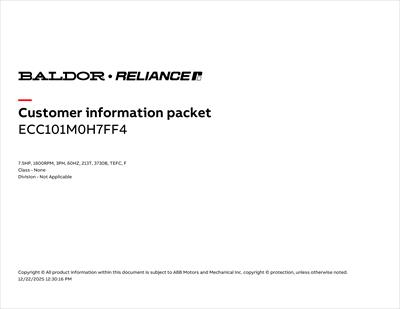

Baldor ECC101M0H7FF4
* Actual Product May Differ From Image
ECC101M0H7FF4
Part Number: ECC101M0H7FF4
Model/Spec Number: 781568992753
Manufacturer: Baldor
HP: 7 1/2
RPM: 1800
Frame:Steel
Frame Size:213T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Robust cast iron frame construction, Suitable for inverter use per NEMA MG1, Sealed Hybrid ceramic bearings to protect against shaft currents, 5 year warranty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$2,671.91 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Fans, Direct drive applications, HVAC systems | ||||
| Enclosure: | TEFC | Frame Size: | 213T | Agency Approvals: | UL;WEEE |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 7 1/2 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1800 | Base Speed: | 1800 RPM |
| Voltage: | 230/460V | Full Load Amps: | 17.74/8.87 | Service Factor: | 1.50 |
| Motor Weight: | 105.0 lbs | Duty Cycle: | Continuous | Overall Length: | 17.89 in |
| Phase: | Three Phase | Efficiency: | 94 % | XP Temp Code: | Without |
| Bearing DE: | 6307 | Bearing ODE: | 6206 | Ambient Temp: | 40 °C |
| Shaft Diameter: | 1.3750 in | Shaft Grounding: | Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 3487.00 | ||
