Baldor CPX36646T

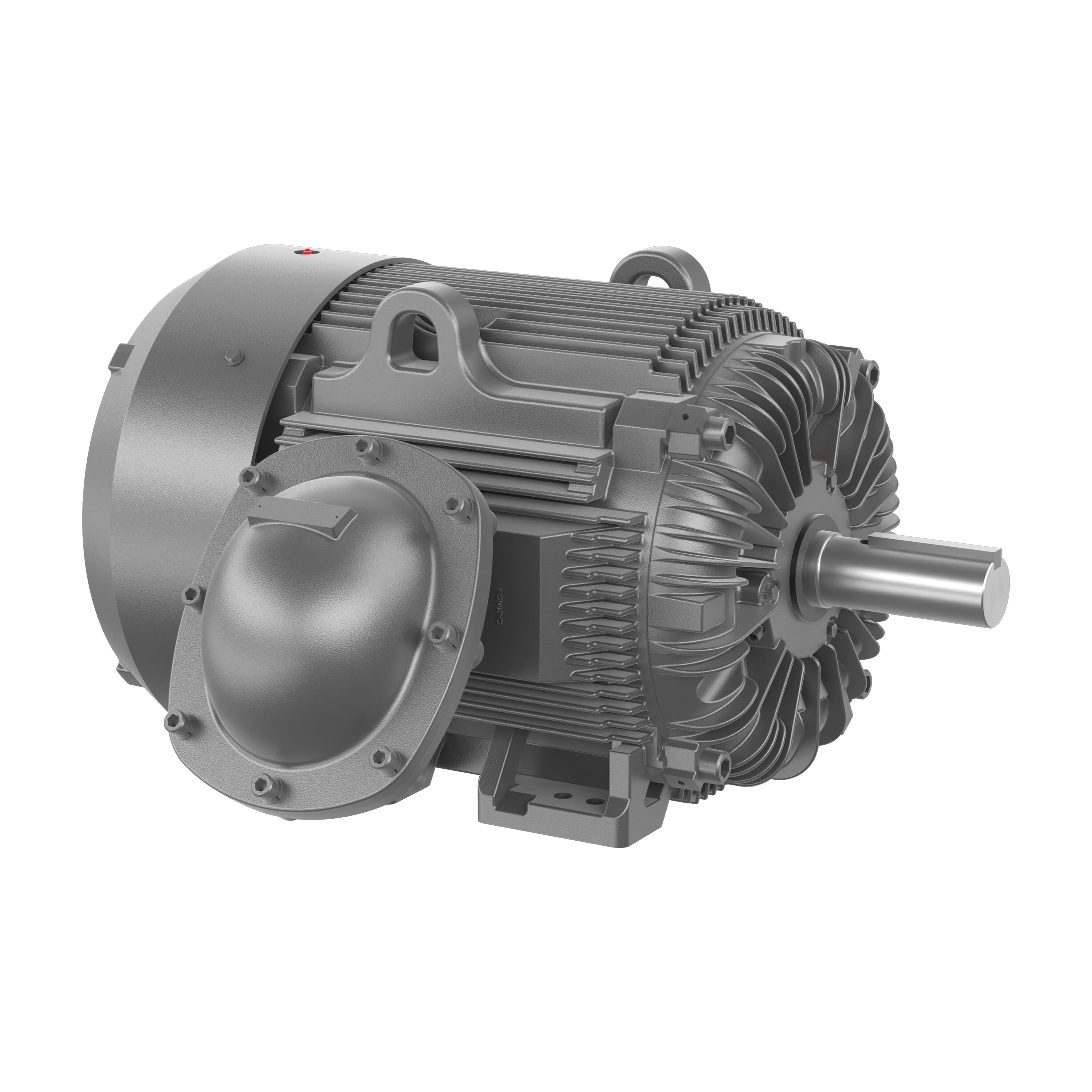

* Actual Product May Differ From Image
CPX36646T
Part Number: CPX36646T
Model/Spec Number: 781568907528
Manufacturer: Baldor
HP: 60
RPM: 1780
Frame:Iron
Frame Size:364T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Cast iron construction, Inverter Duty, 1.15 service factor, Class F insulation, Suitable for 55 degrees ambient temperature, Group E brass labyrinth, Threaded inlet, UL breather drains
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$15,264.48 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Pulp, Paper, Customer specified division 1 hazardous areas, Chemical, Oil, Gas | ||||
| Enclosure: | TEFC | Frame Size: | 364T | Agency Approvals: | CCSAUSEEV;CSA;UL |
| Frame Material: | Iron | Poles: | 4 | Insulation Class: | B |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 60 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1780 | Max Speed: | 3600 RPM |
| Voltage: | 230/460V | Full Load Amps: | 136/67.8 | Service Factor: | 1.15 |
| Motor Weight: | 910.0 lbs | Duty Cycle: | Continuous | Overall Length: | 33.48 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 95 % |
| XP Temp Code: | T3C | End Plate: | STANDARD | Bearing DE: | 65BC03J30X |
| Bearing ODE: | 65BC03J30X | Ambient Temp: | 40 °C | Shaft Diameter: | 2.3740 in |
| Inverter Duty: | Not Inverter | Shaft Grounding: | No Shaft Grounding | IP Rating: | IP55 |
| Standard: | NEMA | List: | 22656.00 | ||
