Baldor CPX18346T
* Actual Product May Differ From Image
CPX18346T
Part Number: CPX18346T
Model/Spec Number: 781568907221
Manufacturer: Baldor
HP: 3
RPM: 1755//1465
Frame:Iron
Frame Size:182T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Cast iron construction, Inverter Duty, 1.15 service factor, Class F insulation, Suitable for 55 degrees ambient temperature, Group E brass labyrinth, Threaded inlet, UL breather drains
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$1,949.16 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

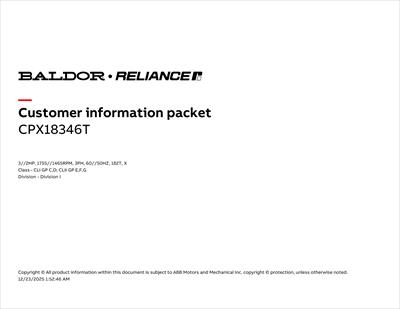

Documents
Product Specifications
| Applications: | Pulp, Paper, Customer specified division 1 hazardous areas, Chemical, Oil, Gas | ||||
| Enclosure: | TEFC | Frame Size: | 182T | Agency Approvals: | CSA EEV;UL |
| Frame Material: | Iron | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 3 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1755//1465 | Max Speed: | 2700 RPM |
| Voltage: | 230/460V | Full Load Amps: | 8.2/4.1//7/3.5 | Service Factor: | 1.00 |
| Motor Weight: | 127.0 lbs | Duty Cycle: | Continuous | Overall Length: | 17.59 in |
| Frequency: | 50;60 Hz | Phase: | Three Phase | Efficiency: | 89.5 % |
| XP Temp Code: | T3C | End Plate: | STANDARD | Ambient Temp: | 40 °C |
| Shaft Diameter: | 1.1250 in | Inverter Duty: | Inverter Duty | Shaft Grounding: | No Shaft Grounding |
| IP Rating: | IP55 | Standard: | NEMA | List: | 2893.00 |
