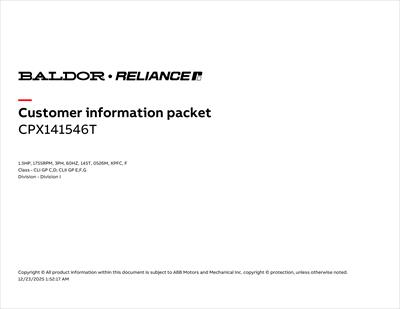

Baldor CPX141546T
* Actual Product May Differ From Image
CPX141546T
Part Number: CPX141546T
Model/Spec Number: 781568915011
Manufacturer: Baldor
HP: 1 1/2
RPM: 1755
Frame:Iron
Frame Size:145T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Cast iron construction, Inverter Duty, 1.15 service factor, Class F insulation, Suitable for 55 degrees ambient temperature, Group E brass labyrinth, Threaded inlet, UL breather drains
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$1,784.09 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS
Documents
Product Specifications
| Applications: | Pulp, Paper, Customer specified division 1 hazardous areas, Chemical, Oil, Gas | ||||
| Enclosure: | TEFC | Frame Size: | 145T | Agency Approvals: | CSA EEV;UL |
| Frame Material: | Iron | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 1 1/2 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1755 | Max Speed: | 2700 RPM |
| Voltage: | 230/460V | Full Load Amps: | 4.4-4.5/2.25 | Service Factor: | 1.00 |
| Motor Weight: | 62.0 lbs | Duty Cycle: | Continuous | Overall Length: | 16.66 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 86.5 % |
| XP Temp Code: | T3C | End Plate: | STANDARD | Ambient Temp: | 40 °C |
| Shaft Diameter: | 0.8750 in | Inverter Duty: | Inverter Ready | Shaft Grounding: | No Shaft Grounding |
| IP Rating: | IP55 | Standard: | NEMA | List: | 2648.00 |
