Baldor VJPFPM2551T-5
* Actual Product May Differ From Image
VJPFPM2551T-5
Part Number: VJPFPM2551T-5
Model/Spec Number: 781568840429
Manufacturer: Baldor
HP: 75
Frame:Steel
Frame Size:365JP
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
1.15 service factor, NEMA design B, UL file E481231, Exterior red paint RAL3002
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$8,170.31 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

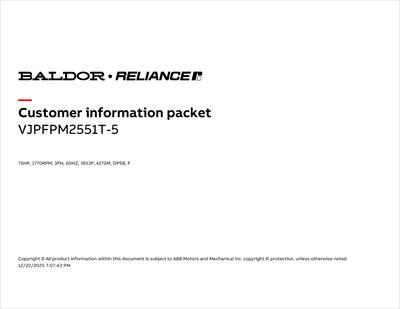

Documents
Product Specifications
| Applications: | UL listed fire pump motors installed per NFPA-20 | ||||
| Enclosure: | ODP | Frame Size: | 365JP | Agency Approvals: | CSA EEV;UL |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | No Mounting | Horsepower: | 75 Hp |
| Synchronous RPM: | 1800 | Voltage: | 575V | Service Factor: | 1.15 |
| Motor Weight: | 565.0 lbs | Duty Cycle: | Continuous | Overall Length: | 34.35 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 94.1 % |
| XP Temp Code: | Without | End Plate: | C-FACE | Bearing DE: | 6313 |
| Bearing ODE: | 6311 | Ambient Temp: | 40 °C | Shaft Diameter: | 2.1250 in |
| Inverter Duty: | Not Inverter | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 11154.00 | ||
