Baldor VEM3713T
* Actual Product May Differ From Image
VEM3713T
Part Number: VEM3713T
Model/Spec Number: 781568818213
Manufacturer: Baldor
HP: 15
RPM: 3500
Frame:Steel
Frame Size:215TC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
60 Hz designs with 50 Hz information on 2,4,6 pole 1-125 HP ratings, Suitable for inverter use per NEMA MG1 Part 31.4.4.2 unless 38 is indicated, Simple F1 to F2 conversion on cast iron frames, Designed for longevity with a 3 year warranty on NEMA premium effecient motors
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$2,478.73 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

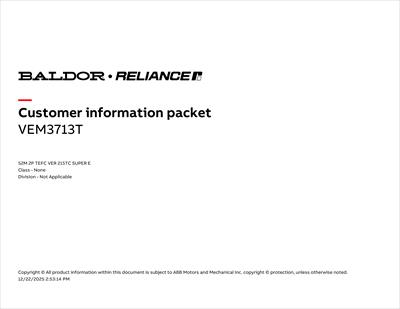

Documents
Product Specifications
| Applications: | Other general purpose applications, Fans, Conveyors, Blowers, Compressors, Pumps, Industrial Machines | ||||
| Enclosure: | TEFC | Frame Size: | 215TC | Agency Approvals: | CSA EEV;NEMA_PREMIUM;UR |
| Frame Material: | Steel | Poles: | 2 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | No Mounting | Horsepower: | 15 Hp |
| Synchronous RPM: | 3600 | Speed RPM: | 3500 | Voltage: | 230/460V |
| Full Load Amps: | 34/17 | Service Factor: | 1.15 | Motor Weight: | 170.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 21.26 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 91 % | XP Temp Code: | Without |
| End Plate: | C-FACE | Bearing DE: | 6307 | Bearing ODE: | 6206 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 1.3750 in | Inverter Duty: | Inverter Ready |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 3679.00 | ||||
