Baldor M1228T
* Actual Product May Differ From Image
M1228T
Part Number: M1228T
Model/Spec Number: 781568116517
Manufacturer: Baldor
HP: 20/8.9
RPM: 1760/1160
Frame:Steel
Frame Size:286T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
60 Hz designs with 50 Hz information on 2,4,6 pole 1-125 HP ratings, Suitable for inverter use per NEMA MG1 Part 31.4.4.2 unless 38 is indicated, Simple F1 to F2 conversion on cast iron frames, Designed for longevity with a 3 year warranty on NEMA premium effecient motors
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$6,821.72 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

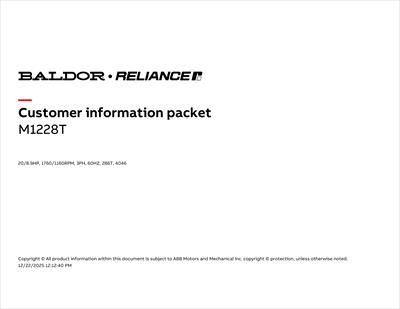

Documents
Product Specifications
| Applications: | Other general purpose applications, Fans, Conveyors, Blowers, Compressors, Pumps, Industrial Machines | ||||
| Enclosure: | OPSB | Frame Size: | 286T | Agency Approvals: | CSA;UR |
| Frame Material: | Steel | Poles: | 4;6 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 20/8.9 Hp |
| Synchronous RPM: | 1800/1200 | Speed RPM: | 1760/1160 | Voltage: | 460V |
| Full Load Amps: | 24/18 | Service Factor: | 1.15 | Motor Weight: | 330.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 23.81 in | Frequency: | 60 Hz |
| Phase: | Three Phase | XP Temp Code: | Without | End Plate: | STANDARD |
| Bearing DE: | 6311 | Bearing ODE: | 6309 | Ambient Temp: | 40 °C |
| Shaft Diameter: | 1.8750 in | Inverter Duty: | Not Inverter | Shaft Grounding: | No Shaft Grounding |
| IP Rating: | NONE | Standard: | NEMA | List: | 10125.00 |
