Baldor ECTM4111T-5G
* Actual Product May Differ From Image
ECTM4111T-5G
Part Number: ECTM4111T-5G
Model/Spec Number: 781568990131
Manufacturer: Baldor
HP: 25
RPM: 1180
Frame:Iron
Frame Size:324T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Severe duty construction for harsh environments, Corrosion resistant epoxy finish, Multiple lifting provisions for installation ease, Strategically placed drains for optimal moisture removal, Lipped conduit, 4 year warranty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$9,905.47 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

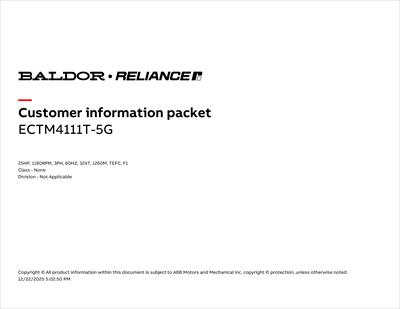

Documents
Product Specifications
| Applications: | Fans, Cooling Towers, Pumps, Air Handling, Chillers, HVAC Systems | ||||
| Enclosure: | TEFC | Frame Size: | 324T | Agency Approvals: | CSA EEV;CURUSEEV;NEMA_PREMIUM |
| Frame Material: | Iron | Poles: | 6 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 25 Hp |
| Synchronous RPM: | 1200 | Speed RPM: | 1180 | Voltage: | 575V |
| Full Load Amps: | 25.7 | Service Factor: | 1.15 | Motor Weight: | 605.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 30.34 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 93 % | XP Temp Code: | Without |
| Bearing DE: | 6312 | Bearing ODE: | 6311 | Ambient Temp: | 40 °C |
| Shaft Diameter: | 2.1250 in | Shaft Grounding: | Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 14702.00 | ||
