Baldor ECTM4104T-G-AO
* Actual Product May Differ From Image
ECTM4104T-G-AO
Part Number: ECTM4104T-G-AO
Model/Spec Number: 781568990049
Manufacturer: Baldor
HP: 30
RPM: 1760
Frame:Iron
Frame Size:286T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Severe duty construction for harsh environments, Corrosion resistant epoxy finish, Multiple lifting provisions for installation ease, Strategically placed drains for optimal moisture removal, Lipped conduit, 4 year warranty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$5,402.13 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

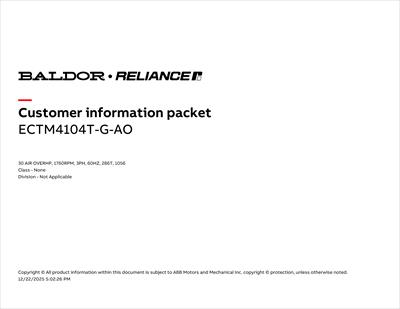

Documents
Product Specifications
| Applications: | Fans, Cooling Towers, Pumps, Air Handling, Chillers, HVAC Systems | ||||
| Enclosure: | TEAO | Frame Size: | 286T | Agency Approvals: | CSA EEV;NEMA_PREMIUM;UR |
| Frame Material: | Iron | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 30 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1760 | Voltage: | 230/460V |
| Full Load Amps: | 76/38 | Service Factor: | 1.15 | Motor Weight: | 437.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 25.71 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 93.6 % | XP Temp Code: | Without |
| End Plate: | STANDARD | Bearing DE: | 6311 | Bearing ODE: | 6309 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 1.8750 in | Inverter Duty: | Inverter Ready |
| Shaft Grounding: | Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 8018.00 | ||||
