Baldor ECTM2333T-G-AO
* Actual Product May Differ From Image
ECTM2333T-G-AO
Part Number: ECTM2333T-G-AO
Model/Spec Number: 781568989371
Manufacturer: Baldor
HP: 15
RPM: 1765
Frame:Iron
Frame Size:254T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Severe duty construction for harsh environments, Corrosion resistant epoxy finish, Multiple lifting provisions for installation ease, Strategically placed drains for optimal moisture removal, Lipped conduit, 4 year warranty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$3,315.52 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

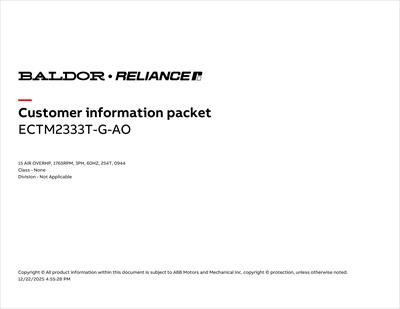

Documents
Product Specifications
| Applications: | Fans, Cooling Towers, Pumps, Air Handling, Chillers, HVAC Systems | ||||
| Enclosure: | TEAO | Frame Size: | 254T | Agency Approvals: | CSA;CSA EEV;NEMA_PREMIUM;UR |
| Frame Material: | Iron | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 15 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1765 | Voltage: | 230/460V |
| Full Load Amps: | 36.2/18.1 | Service Factor: | 1.15 | Motor Weight: | 268.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 23.09 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 92.4 % | XP Temp Code: | Without |
| Bearing DE: | 6309 | Bearing ODE: | 6208 | Ambient Temp: | 40 °C |
| Shaft Diameter: | 1.6250 in | Shaft Grounding: | Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 4921.00 | ||
