Baldor CTM1761T
* Actual Product May Differ From Image
CTM1761T
Part Number: CTM1761T
Model/Spec Number: 781568457320
Manufacturer: Baldor
HP: 15/3.75
RPM: 1760/885
Frame:Iron
Frame Size:254T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Severe duty construction for harsh environments, Corrosion resistant epoxy finish, Multiple lifting provisions for installation ease, Strategically placed drains for optimal moisture removal, Lipped conduit, 4 year warranty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$4,860.43 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

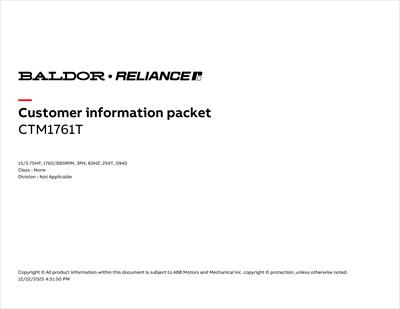

Documents
Product Specifications
| Applications: | Fans, Cooling Towers, Pumps, Air Handling, Chillers, HVAC Systems | ||||
| Enclosure: | TEFC | Frame Size: | 254T | Agency Approvals: | CSA;UR |
| Frame Material: | Iron | Poles: | 4;8 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 15/3.75 Hp |
| Synchronous RPM: | 1800/900 | Speed RPM: | 1760/885 | Voltage: | 460V |
| Full Load Amps: | 18.1/7.8 | Service Factor: | 1.15 | Motor Weight: | 290.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 24.78 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 90.2 % | XP Temp Code: | Without |
| End Plate: | STANDARD | Bearing DE: | 6309 | Bearing ODE: | 6309 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 1.6250 in | Inverter Duty: | Not Inverter |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 7214.00 | ||||
