Baldor ECR9054T
* Actual Product May Differ From Image
ECR9054T
Part Number: ECR9054T
Model/Spec Number: 781568777725
Manufacturer: Baldor
HP: 5
RPM: 1760
Frame:Iron
Frame Size:184T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
High torque NEMA Design A, exceeds NEMA Design C torques, 1.25 Service Factor up to 100 HP, 1.15 Service Factor over 100 HP, Oversized ball bearings up to 50 HP, Ball and roller bearing designs 60 HP and above
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$907.70 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

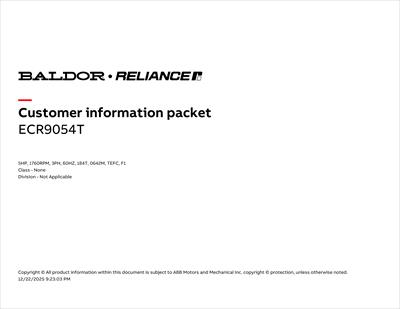

Documents
Product Specifications
| Applications: | Above ground mining, Cement, Bulk material handling, Crushers, Belt conveyors, Aggregate | ||||
| Enclosure: | TEFC | Frame Size: | 184T | Agency Approvals: | CCSA US;CSA EEV;NEMA_PREMIUM;UR |
| Frame Material: | Iron | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 5 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1760 | Max Speed: | 2700 RPM |
| Voltage: | 230/460V | Full Load Amps: | 13.8/6.9 | Service Factor: | 1.25 |
| Motor Weight: | 118.0 lbs | Duty Cycle: | Continuous | Overall Length: | 15.93 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 89.5 % |
| XP Temp Code: | Without | End Plate: | STANDARD | Bearing DE: | 6306 |
| Bearing ODE: | 6206 | Ambient Temp: | 40 °C | Shaft Diameter: | 1.1250 in |
| Inverter Duty: | Inverter Duty | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 1160.00 | ||
