Baldor VECP83774T-4

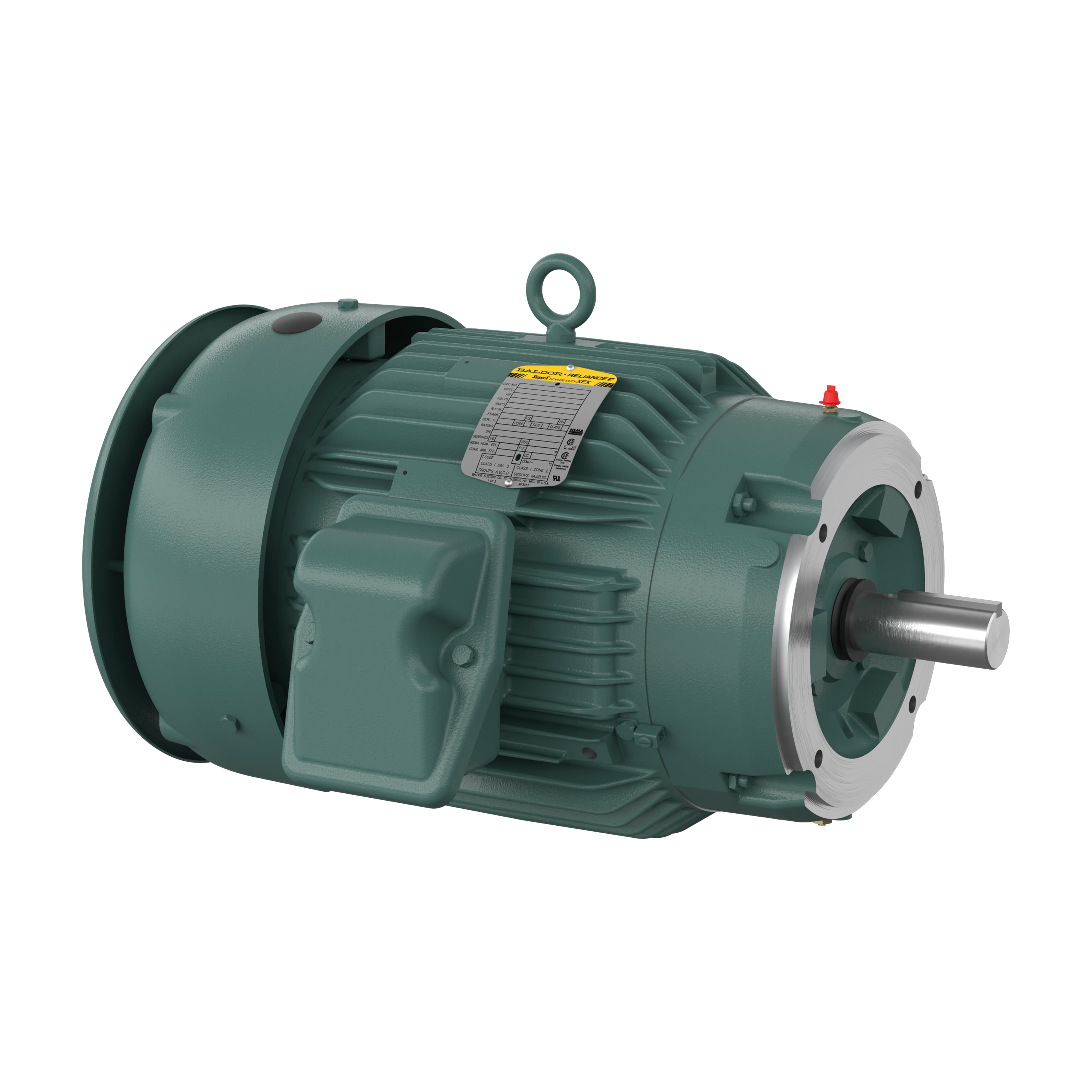

* Actual Product May Differ From Image
VECP83774T-4
Part Number: VECP83774T-4
Model/Spec Number: 781568467954
Manufacturer: Baldor
HP: 10
RPM: 1765
Frame:Iron
Frame Size:215TC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Robust cast iron frame construction, Regreasable bearings all frames, 304 Stainless steel nameplates, Inverter Duty nameplate, Division 2/Class 1 Groups A-B-C-D markings on nameplate, Insulated NDE bearing on 5000 frames, Class F insulated motor with 1.15 service factor
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$2,774.15 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight
Documents
Product Specifications
| Applications: | Power Generation, Metal & Foundries, Chemical, Oil, Gas, Food Processing, Pulp, Paper, Forest production, Wastewater treatment, Cement | ||||
| Enclosure: | TEFC | Frame Size: | 215TC | Agency Approvals: | CCSA US;CSA EEV;NEMA_PREMIUM;UR |
| Frame Material: | Iron | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | No Mounting | Horsepower: | 10 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1765 | Max Speed: | 2700 RPM |
| Voltage: | 460V | Full Load Amps: | 12.5 | Service Factor: | 1.15 |
| Motor Weight: | 231.0 lbs | Duty Cycle: | Continuous | Overall Length: | 20.32 in |
| Frequency: | 60 Hz | Phase: | Three Phase | Efficiency: | 91.7 % |
| XP Temp Code: | T3C | End Plate: | C-FACE | Bearing DE: | 6307 |
| Bearing ODE: | 6307 | Ambient Temp: | 40 °C | Shaft Diameter: | 1.3750 in |
| Inverter Duty: | Inverter Duty | Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE |
| Standard: | NEMA | List: | 3928.00 | ||
