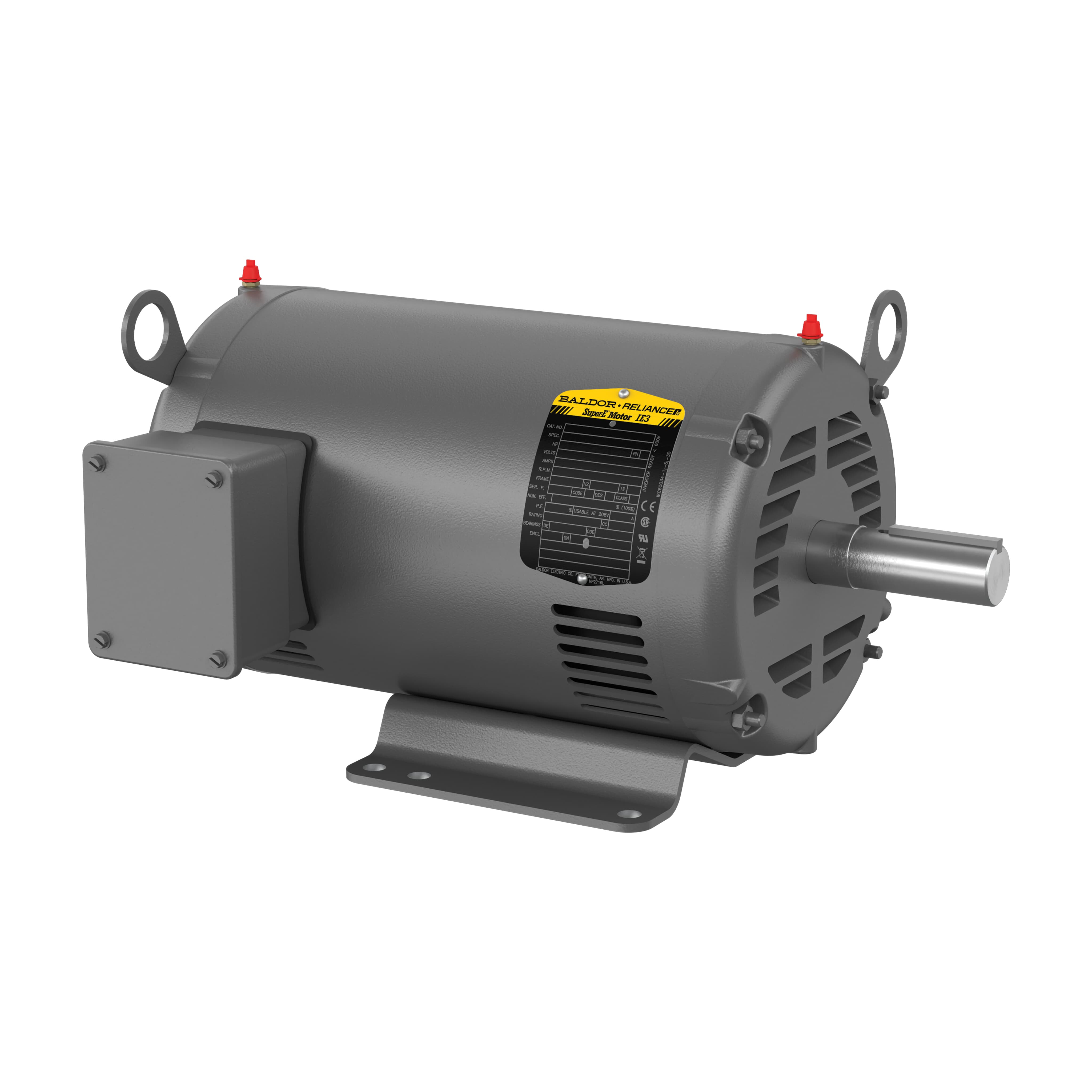

Baldor GNEM3607T
* Actual Product May Differ From Image
GNEM3607T
Part Number: GNEM3607T
Model/Spec Number: 781568585825
Manufacturer: Baldor
HP: 1.1//1-1/2 kW/Hp
RPM: 1175//970
Frame:Steel
Frame Size:182T
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
50/60 Hz Design, Designed for longevity with 3 year warranty, Suitable for inverter use per NEMA MG1 Part 31.4.4.2
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$1,427.00 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS
Documents
Product Specifications
| Applications: | Fans, Pumps, Blowers, Air Handling, HVAC Systems, General Purpose Applications | ||||
| Enclosure: | TEFC | Frame Size: | 182T | Agency Approvals: | CE;CURUSEEV;IE3;NEMA_PREMIUM;UKCA;WEEE |
| Frame Material: | Steel | Poles: | 6 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 1.1//1-1/2 kW/Hp |
| Synchronous RPM: | 1000//1200 | Speed RPM: | 1175//970 | Voltage: | 190/380//208-230/460V |
| Full Load Amps: | 5.2-5/2.5//5.6/2.8 | Service Factor: | 1.15 | Motor Weight: | 90.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 18.04 in | Phase: | Three Phase |
| Efficiency: | 87.5 % | XP Temp Code: | Without | Bearing DE: | 6206 |
| Bearing ODE: | 6205 | Ambient Temp: | 40 °C | Shaft Diameter: | 1.1250 in |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 2118.00 | ||||
