Baldor CCPX18526T
* Actual Product May Differ From Image
CCPX18526T
Part Number: CCPX18526T
Model/Spec Number: 781568912737
Manufacturer: Baldor
HP: 5
RPM: 3500//2900
Frame:Iron
Frame Size:184TC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Cast iron construction, Inverter Duty, 1.15 SF, Class F Insulation, Group E brass labyrinth shaft slingers, Threaded lead inlet, UL breather drains
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$3,204.36 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

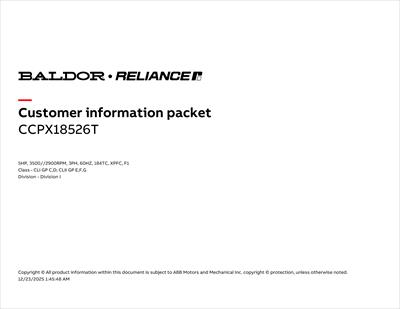

Documents
Product Specifications
| Applications: | Pulp, Paper, Division 1 hazard areas, Wastewater, Chemcial, Oil, Gas | ||||
| Enclosure: | TEFC | Frame Size: | 184TC | Agency Approvals: | CSA EEV;UL |
| Frame Material: | Iron | Poles: | 2 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 5 Hp |
| Synchronous RPM: | 3600 | Speed RPM: | 3500//2900 | Max Speed: | 5400 RPM |
| Voltage: | 230/460V | Full Load Amps: | 11/5.5//8.4/4.2 | Service Factor: | 1.00 |
| Motor Weight: | 122.0 lbs | Duty Cycle: | Continuous | Overall Length: | 18.33 in |
| Frequency: | 50;60 Hz | Phase: | Three Phase | Efficiency: | 88.5 % |
| XP Temp Code: | T3C | End Plate: | C-FACE | Ambient Temp: | 40 °C |
| Shaft Diameter: | 1.1250 in | Inverter Duty: | Inverter Duty | Shaft Grounding: | No Shaft Grounding |
| IP Rating: | IP55 | Standard: | NEMA | List: | 4756.00 |
