Baldor VBM3538
* Actual Product May Differ From Image
VBM3538
Part Number: VBM3538
Model/Spec Number: 781568115398
Manufacturer: Baldor
HP: 1/2
RPM: 1725
Frame:Steel
Frame Size:56C
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Manual release, Spring-set brake, Vibration damping base, Most suitable for vertical mounting with brake above or below motor
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$1,127.18 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS

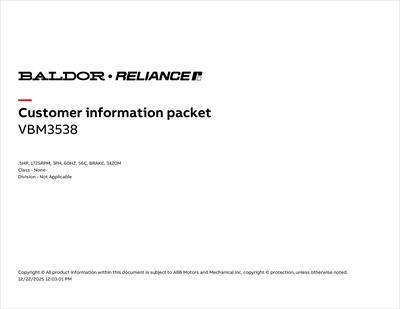

Documents
Product Specifications
| Applications: | Conveyors, Unit handling, Machine tools, Door operators, Speed reducers, Packaging equipment | ||||
| Enclosure: | TENV | Frame Size: | 56C | Agency Approvals: | CSA;UR |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | B |
| Shaft Rotation: | Reversible | Base: | No Mounting | Horsepower: | 1/2 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1725 | Voltage: | 208-230/460V |
| Full Load Amps: | 1.9-1.8/.9 | Service Factor: | 1.00 | Motor Weight: | 30.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 14.98 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 75.5 % | XP Temp Code: | Without |
| End Plate: | C-FACE | Bearing DE: | 6203 | Bearing ODE: | 6203 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 0.6250 in | Inverter Duty: | Not Inverter |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 1673.00 | ||||
