Baldor CXM05142
* Actual Product May Differ From Image
CXM05142
Part Number: CXM05142
Model/Spec Number: 781568967928
Manufacturer: Baldor
HP: 1
RPM: 1770//1475
Frame:Steel
Frame Size:56C
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Robust steel and cast iron frame designs, IP54 ingress protection, 1.15 service factor, Auto thermal overload, Threaded lead inlet, Low noise vibration dampening base, Inverter Duty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$1,658.77 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via UPS

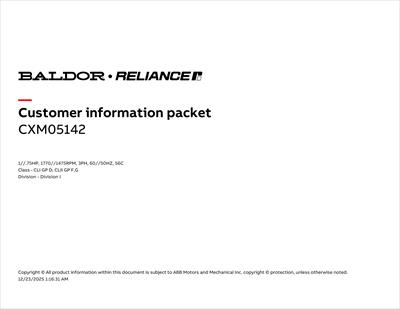

Documents
Product Specifications
| Applications: | Customer specificed division 1 hazardous areas, pumps, fans, conveyors | ||||
| Enclosure: | TEFC | Frame Size: | 56C | Agency Approvals: | CSA EEV;UL |
| Frame Material: | Steel | Poles: | 4 | Insulation Class: | F |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 1 Hp |
| Synchronous RPM: | 1800 | Speed RPM: | 1770//1475 | Max Speed: | 2700 RPM |
| Voltage: | 230/460V | Full Load Amps: | 3.2/1.6//3.08/1.54 | Service Factor: | 1.00 |
| Motor Weight: | 50.0 lbs | Duty Cycle: | Continuous | Overall Length: | 14.28 in |
| Frequency: | 50;60 Hz | Phase: | Three Phase | Efficiency: | 85.5 % |
| XP Temp Code: | T3C | End Plate: | C-FACE | Ambient Temp: | 40 °C |
| Shaft Diameter: | 0.6250 in | Inverter Duty: | Inverter Duty | Shaft Grounding: | No Shaft Grounding |
| IP Rating: | NONE | Standard: | NEMA | List: | 2462.00 |
