Baldor CFSWDM3708T-E
* Actual Product May Differ From Image
CFSWDM3708T-E
Part Number: CFSWDM3708T-E
Model/Spec Number: 781568866849
Manufacturer: Baldor
HP: 5
RPM: 1165
Frame:Stainless Steel
Frame Size:213TC
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
300 series stainless steel, Individually welded feet for ease of cleaning, Smooth heads on external drains & hardware, Welded and polished conduit box, Laser marked nameplate, Internal & External shaft sealing, 3 Year Warranty
Want yours repaired?
Call us for repair and exchange pricing
Contact supplier for technical support: 586-469-0710
Returns: See policies
Payment methods:
$4,460.54 /each
Base price only. Shipping, sales tax (if applicable) and a 3% credit card fee may apply.
Please call or request a quote below for availability
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
586.469.0710
Typically Ships: 1-2 Days Warranty: 2 Year from Date of Shipment
Ships via Freight

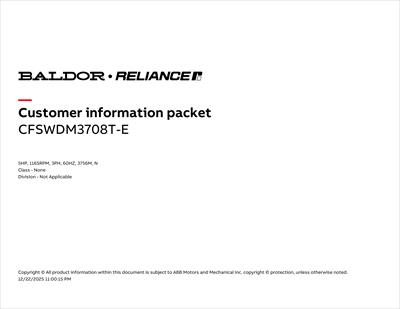

Documents
Product Specifications
| Applications: | Caustic environment, Food Processing, High pressure washdown, Outdoors, Pumps, Wastewater, Sanitary washdown | ||||
| Enclosure: | TEFC | Frame Size: | 213TC | Agency Approvals: | CSA EEV;NEMA_PREMIUM;UR |
| Frame Material: | Stainless Steel | Poles: | 6 | Insulation Class: | H |
| Shaft Rotation: | Reversible | Base: | Rigid | Horsepower: | 5 Hp |
| Synchronous RPM: | 1200 | Speed RPM: | 1165 | Voltage: | 230/460V |
| Full Load Amps: | 14.8/7.4 | Service Factor: | 1.15 | Motor Weight: | 179.0 lbs |
| Duty Cycle: | Continuous | Overall Length: | 22.12 in | Frequency: | 60 Hz |
| Phase: | Three Phase | Efficiency: | 89.5 % | XP Temp Code: | Without |
| End Plate: | C-FACE | Bearing DE: | 6307 | Bearing ODE: | 6307 |
| Ambient Temp: | 40 °C | Shaft Diameter: | 1.3750 in | Inverter Duty: | Inverter Duty |
| Shaft Grounding: | No Shaft Grounding | IP Rating: | NONE | Standard: | NEMA |
| List: | 6695.00 | ||||
