Repairs and Service For

Refurbished Siemens Motors

Refurbished Motor Sales » Siemens Motors
Sort by:

Servo Lab Capabilities

We have documented 96 different Servo Manufacturer repair reports in our Database
We repair AC Servos, DC Servos, AC Spindles, and AC Actuators
Capable of 24-hour repairs in many cases
We have thousands of spare and rebuilt motors in our inventory for parts or exchange motors

Servo Lab Repair Procedures

  1. Data

    Motor nameplate data is recorded

  2. Inspection

    A visual inspection of any damage to the motor.

    We check for
    • Damaged Leads/Terminals
    • Worn output shaft/keyways
    • Cracks in end bells or covers
  3. Job Ticket

    We complete to full write up off all motor data

    Including
    • All winding tests (Resistance, Meg Ω, Continuity)
    • All bearing sizes
    • All seal sizes
    • Brake torque tests (Record Torque, winding resistance)
    • Feedback Tests (Tachometer/Encoder)
  4. Motor Disassembly

    • Bearing and seal sizes are recorded
    • Bearing fits are measured on shaft and End bell
    • Brake torque is measured as well as resistance and Meg Ω
    • More winding tests are performed (Surge and HiPOT tests)
    • Stator is then washed and baked in oven
    • Magnets are inspected for cracks or if loose on shaft
    • Encoder is tested with either (Heidenhain PWM20, Sick PGT-11, or Mitchell Electronics equipment)
  5. Assembly

    • New bearings are installed
    • New seals are installed
    • If required, new windings are impregnated
    • Brakes are rebuilt or replaced depending on manufacturer design.
    • Rebuilt or New encoders are installed and aligned using:
    • (Heidenhain PWM20, Sick PGT-11, or Mitchell Electronics equipment)
  6. Rotor Balancing and Testing

    • Rotor is run through a full vibration diagnostic
  7. Run Testing

    • Every Motor is Run for a minimum of 1 hour using one of our drives.
    • We use Siemens S110, S120, IndraDrive, AB Kinetix 300, Yaskawa 7, and AMC drives
  8. Service Report

    • A Final 3-page Service Report is filled out
    • Pinout diagram for power and feedback is provided
    • Brake torque is recorded a final time for our Service Reports
    • A photo of nameplate and motor is attached
    • A motor tag is installed on motor with QR code linking Service Report and Job Histories
    • If requested, a YouTube link is attached to the service report of motor

Refurbished Siemens Servo and Spindle Motors

For businesses looking to maximize their budget and minimize downtime, a refurbished Siemens servo motor is a great option. Our technicians have thoroughly gone through every motor we offer for sale—first dismantling and cleaning it, then replacing any worn out parts with genuine OEM Siemens parts. When you get your motor back, it will function as well as a new one. All motor services we offer to Michigan area businesses include new motors, industrial motor repairs, send in repairs, and refurbished motor sales.

A refurbished servo motor can save you as much as 50% to 70% over the cost of a new replacement, and there is a significant time savings compared to sending us your non-working servo for repair.  Our inventory of refurbished Siemens servo motors varies, so if you don’t see what you need be sure to check back.

You can also contact us online to request an inventory check, or call us at 586-469-0710.

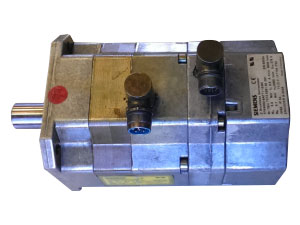

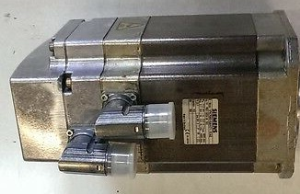

SIEMENS SERVO MOTOR, MOD# 1FT-5102-1AC71-1FA0 SIEMENS SERVO MOTOR, MOD# 1FT-5102-1AC71-1FA0 $3,447.60 Get a Repair Quote

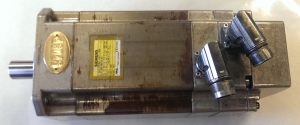

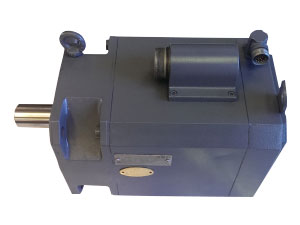

SIEMENS SERVO MOTOR, MOD# 1FK6080-6AF71-1EBO SIEMENS SERVO MOTOR, MOD# 1FK6080-6AF71-1EBO $2,856.00 Get a Repair Quote

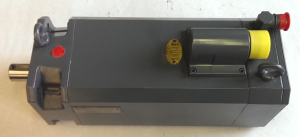

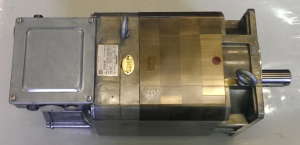

SIEMENS SERVO MOTOR, 1FT5072-0AC71-1-Z SIEMENS SERVO MOTOR, 1FT5072-0AC71-1-Z $2,167.50 Get a Repair Quote

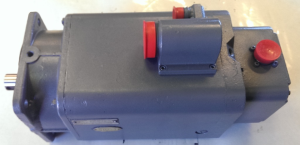

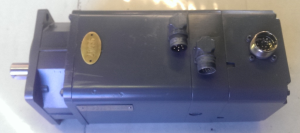

SIEMENS SPINDLE MOTOR, MOD# 1PH7133-2ND02-0CA0 SIEMENS SPINDLE MOTOR, MOD# 1PH7133-2ND02-0CA0 $2,448.00 Get a Repair Quote

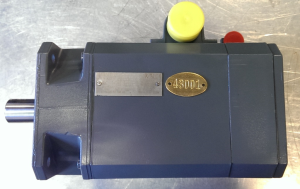

SIEMENS MOTOR, MOD# 1FT6082-8AF71-4AB2 SIEMENS MOTOR, MOD# 1FT6082-8AF71-4AB2 $2,070.60 Get a Repair Quote

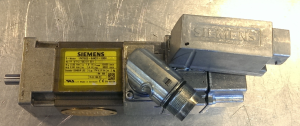

SIEMENS SERVO MOTOR, MOD# 1FK7063-5AF71-1EH0 SIEMENS SERVO MOTOR, MOD# 1FK7063-5AF71-1EH0 $1,579.98 Get a Repair Quote
SIEMENS SERVO MOTOR 1FK7063-5AH71-1EA2 SIEMENS SERVO MOTOR, MOD# 1FK7063-5AH71-1EA2 $1,224.00 Get a Repair Quote

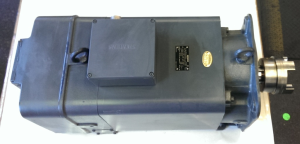

SIEMENS SERVO MOTOR, MOD# 1PH7133-7QD02-OBJ3 SIEMENS SERVO MOTOR, MOD# 1PH7133-7QD02-OBJ3 $2,437.80 Get a Repair Quote

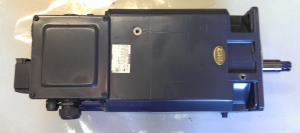

SIEMENS MOTOR, MOD# 1FT6102-8AF71-4AG1 SIEMENS MOTOR, MOD# 1FT6102-8AF71-4AG1 $2,244.00 Get a Repair Quote
SIEMENS SERVO MOTOR, MOD# 1FK7022-5AK21-1DG0 SIEMENS SERVO MOTOR, MOD# 1FK7022-5AK21-1DG0 $902.70 Get a Repair Quote
SIEMENS SERVO MOTOR, MOD# 1FK7064-7AF71-1EG0 SIEMENS SERVO MOTOR, MOD# 1FK7064-7AF71-1EG0 $2,550.00 Get a Repair Quote
SIEMENS SERVO MOTOR, MOD# 1FT6086-8AC71-3EB2 SIEMENS SERVO MOTOR, MOD# 1FT6086-8AC71-3EB2 $4,222.80 Get a Repair Quote
SIEMENS SPINDLE MOTOR, MOD# 1PH6161-4CF46-Z SIEMENS SPINDLE MOTOR, MOD# 1PH6161-4CF46-Z $3,978.00 Get a Repair Quote
